Vineyard Product Range

Supplying vineyards since 2005


Ag-Steel™   Vineyard Product Range

We offer a system that does what it says it will – helping vineyards grow with integrity, protect the land, and continue to produce the exceptional wines New Zealand is known for.

The Ag-Steel™ range is manufactured in New Zealand using pre galvanised GS310 tube, which features a Z450 coating with external weld seam zinc repair, ensuring coating continuity. The product features a smooth and consistent surface finish, is highly formable and is particularly suitable for outdoor and corrosion prone environments where long term durability is essential.

When you choose AgSteel, you’re choosing a product that’s backed by a partner who understands what’s at stake: the land, your craft, and the future of your wine.

Proudly New Zealand made. Gold-standard sustainably manufactured.

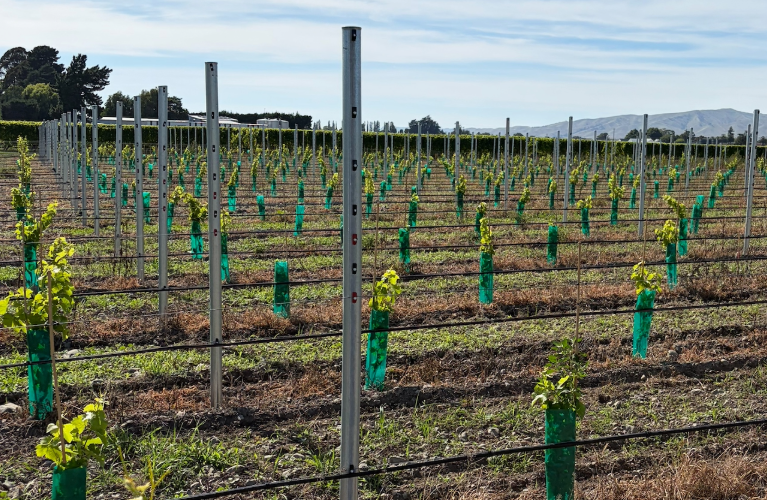

Ag-Steel Vine Post

Ag-Steel Vine Post

Ag-Steel Vineyard End Assemblies

Ag-Steel Vineyard End Assemblies

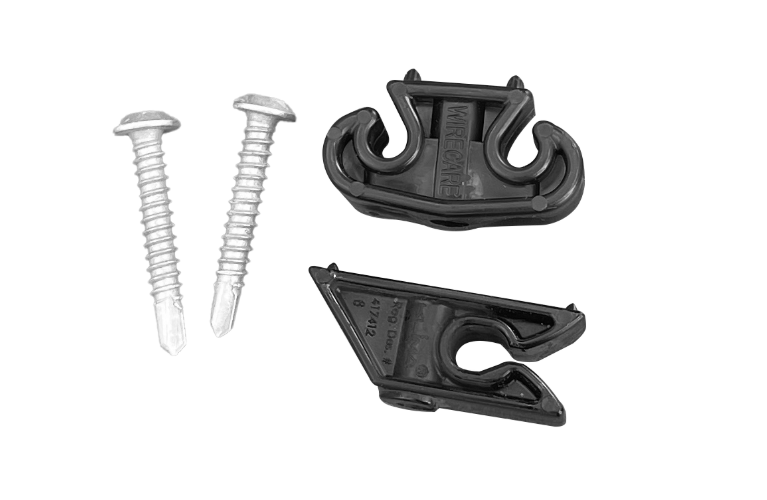

Ag-Steel Vineyard Clips

Ag-Steel Vineyard Clips

Vineyard Product Specifications
Base Material Continuously hot-dip galvanised (Galvsteel® G310)
Vine Post 76 Vine Post 76 (76.0 x 1.2) Four lengths 1.8m, 2.1m, 2.4m and 2.7m | Features include Star Point and Swagged Top
VinePost 63 Vine Post 63 (63.0 x 1.2) Four lengths 1.8m, 2.1m, 2.4m and 2.7m | Features include Star Point and Swagged Top
Vine Post 51 Vine Post 51 (50.8 x 1.2) Four lengths 1.8m, 2.1m, 2.4m and 2.7m
End Assembly Box End 1.65m High
End Assembly Stay End 2.40m High
Yield Strength 310MPa (BM)
Tensile Strength 450 MPa (BM)
Base Material Standard (GS): AS/NZS 1365:1996 (R2016), AS 1397:2021
Product standard AS 1450
Surface Finish Z450 coating (both sides). Medium Spangle
Tube Thickness 1.2mm
G310 Base Material - Typical Mechanical Properties
Yield strength Tensile strength EI % on Lo=50mm
310 MPa 450 MPa 25

Vineyard Solutions You Can Trust

Blue Scope NZ Steel
Blue Scope NZ Steel
Sustainable Stainless
NZ Made
NZ Steel Galvanised

Looking for a customised product?

Let’s chat. We offer design, prototyping, and production — all managed in-house for precision and quality control.
