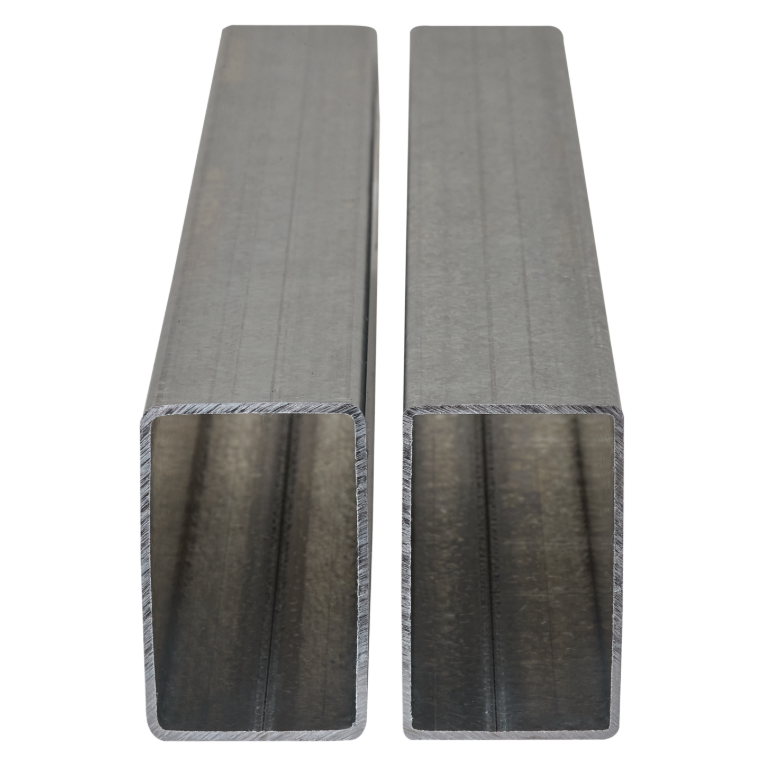

Ag-Beam™ High Strength Orchard Support Beams

Proven reliability for modern orchards

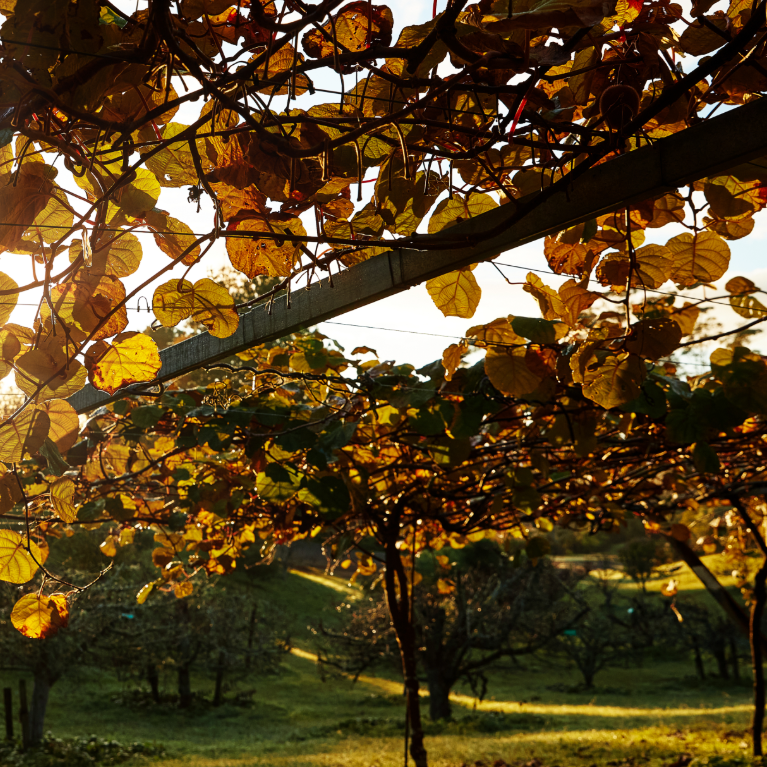

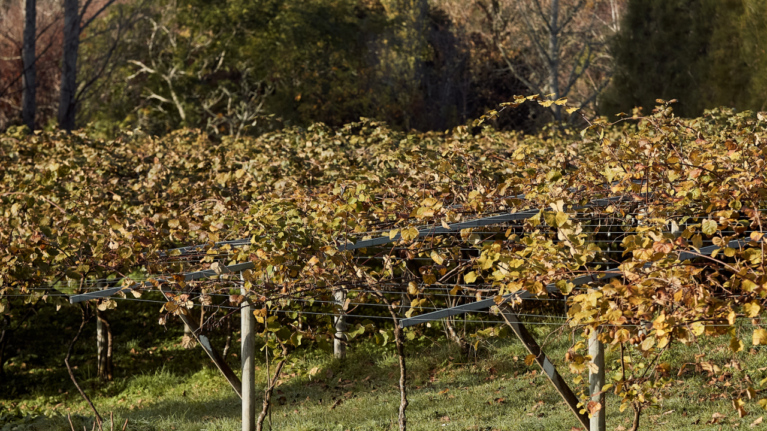

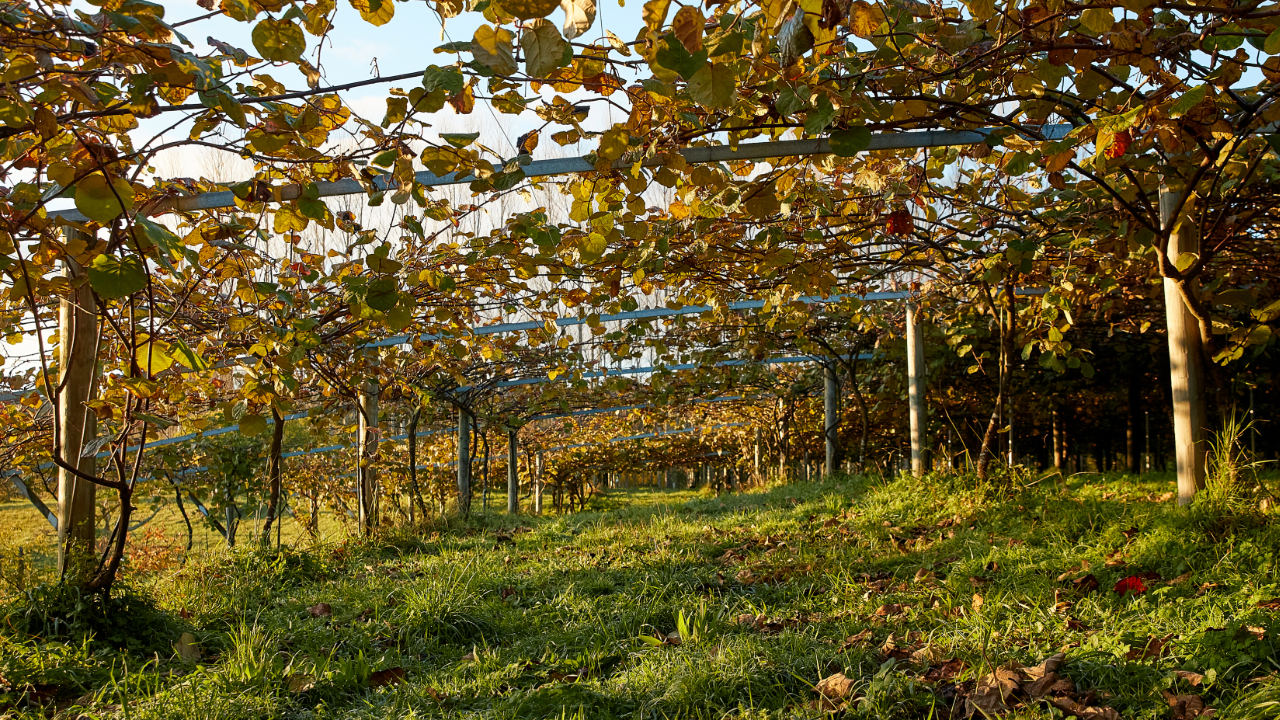

Ag-Beam™ has a long track record in New Zealand orchards, with early installations still performing today. Purpose-built for orchard and vineyard support systems, Ag-Beam™ is trusted by growers seeking long-lasting, steel orchard infrastructure. Designed to handle increasing crop demands and tough growing conditions, AgBeam™ delivers dependable, long-term support you can trust.

Why choose Ag-Beam™ orchard support beams?

Proven quality & reliability in orchard environments

Purpose-built for orchard and vineyard support systems, the Ag-Steel range is manufactured from high-grade steel 310 steel (minimum 310 MPa)  ensuring compatibility and consistent performance across the Ag-Steel system, delivering dependable structural strength season after season.

Learn more

High load strength for modern fruit yields

Manufactured from strong grade 310 steel (minimum 310 MPa), AgSteel is engineered to support today’s higher fruit yields with confidence.

Learn more

Simple, efficient orchard installation

The Ag-Steel system is designed to work seamlessly together to create an efficient, cost-effective support system that’s quick to install and easy to work with on site.

Learn more

Superior weather and corrosion protection

A Z450 galvanised coating delivers exceptional corrosion resistance, ensuring long-term performance in demanding orchard environments.

Learn more

Variable lengths to suit your needs

Ag-Beam and Ag-Stringing Poles are supplied ex-mill in variable lengths, offering flexibility to match different orchard layouts and applications.

Learn more

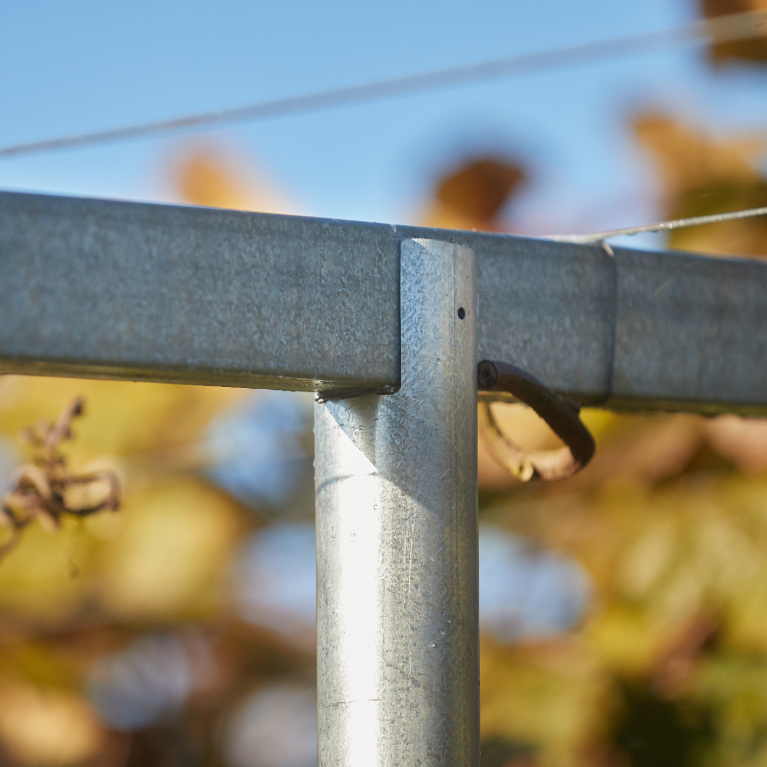

Enhanced structural strength with Ag-Joiners

User-friendly Ag-Joiners are available in multiple lengths and can be used to strengthen and reinforce the overall structure where required.

Learn more

Customisable wall thickness options

Two wall thickness options are available (1.2. 1.5), allowing you to tailor the system to suit orchard load requirements or row spacing.

Learn more

Insect- and fungus-resistant steel beams

Steel construction minimises insect and fungus build-up commonly associated with timber products, providing a cleaner, more environmentally friendly alternative.

Learn more

Sustainable, organic-friendly recyclable orchard solution

Ag-Steel is a responsible, future-focused solution for orchard and vineyard infrastructure. AgSteel products will not cause chemical leaching and are fully recyclable, supporting environmentally responsible orchard and vineyard practices.

Learn more

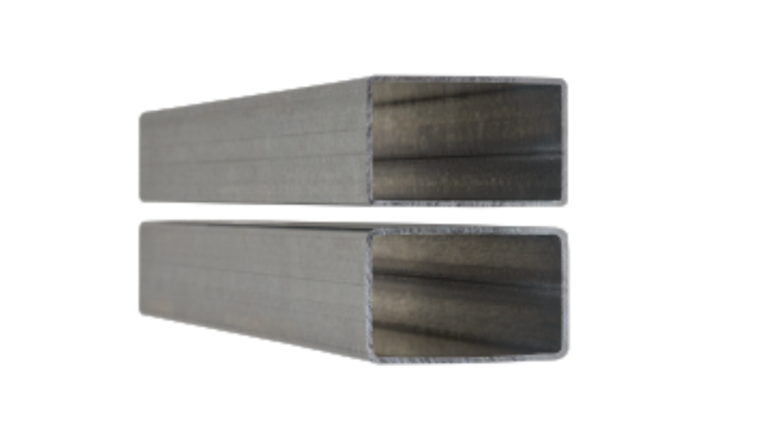

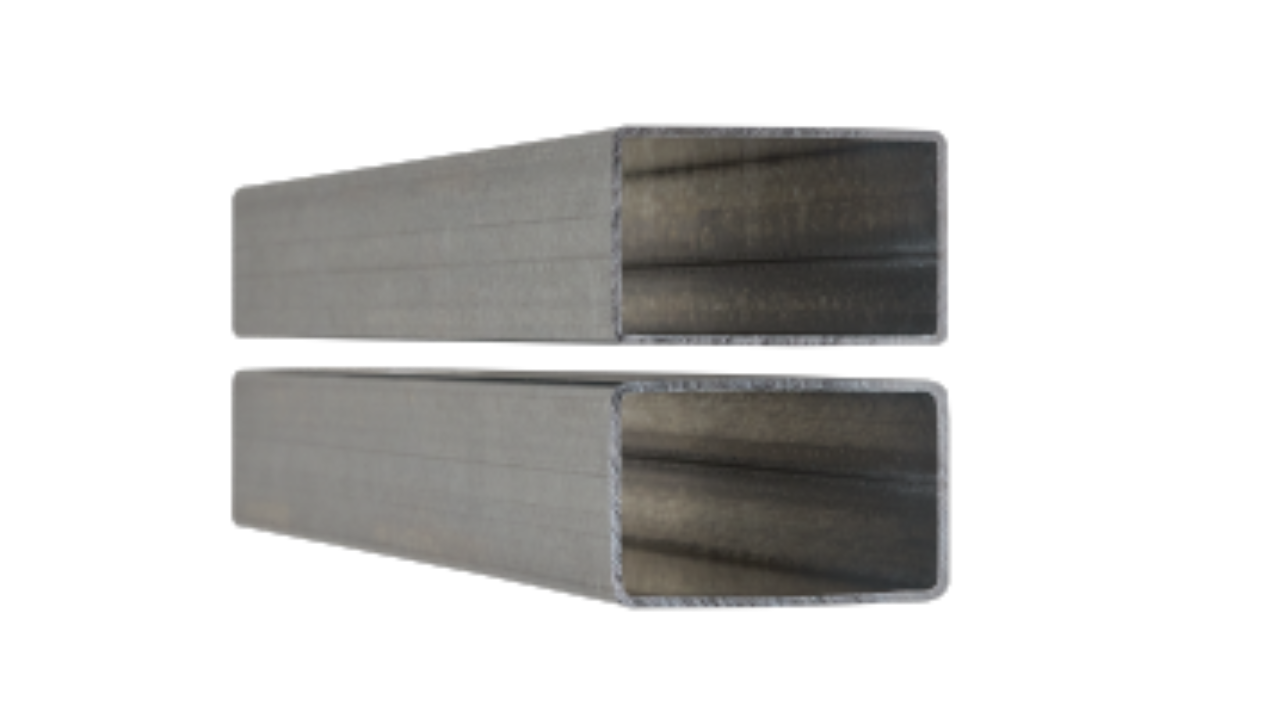

Ag-Beam™ Sizes
Type Measurement mm Guage mm Length
Standard Ag-Beam™ 64 x 38 1.15 10m or specify length
Ag-Joiner 68 x 43 1.55 400mm or specify length
Heavy Ag-Beam™ 64 x 38 1.55 10m or specify length
Ag-Joiner 68 x 43 1.85 400mm or specify length

Supporting Products For Ag-Beam™

Ag-Brace

Ag-Brace

Ag-Cessories

Ag-Cessories

Blue Scope NZ Steel
NZ Steel Galvanised
NZ Made
Sustainable Stainless
Blue Scope NZ Steel

Looking for a customised product?

Let’s chat. We offer design, prototyping, and production — all managed in-house for precision and quality control.
